Details

• Brand:



• SKU:

  85H-051-434

• Other Names:

  Etron Wall Charger

• Description:

  A premium portable electric vehicle charger with dual voltage (120V & 240V) designed to charge plug-in hybrid and battery electric model vehicles. It is a plug-and-play solution that makes it easy to charge at home or on the go while providing the reliability and safety features demanded by automobile manufacturers. At 32 amps, it can charge up to 5x faster than standard Level 1 cordsets.

  UL and cUL rated, this product is tested to the highest safety standards possible. The swappable grid plug enables low & high-power charging and automatically determines and sets the correct power level according to global technical and legal requirements. It is designed with thermal detection, auto-restart and recovery, ground detection against faults and has a NEMA 6P watertight rating.


  Simply plug in the charger, watch it charge via its LED status bar, and unplug when finished. With its slim, compact, and lightweight design, you can take it with you for fast on-the-go charging.


  Key Features:
  • Dual voltage (120V & 240V) cordset
  • State-of-the-art safety features
  • Compact, portable, 32amps @240V
  • HMI: 3 LED status bar
  • IP67 Rating can be submerged up to 3ft (1m)
  • UL and cUL certified
  • NEMA enclosure and IEC grid plug to charge in any environment
  • Easy to use, simply plug-in and charge J1772 plug type which is applicable for all vehicles meeting US standards
  • Easily mount in your garage or on a wall with the included bracket
  • Max Current: 240V @ 32A (7.7kW); 120V @ 12A (1.4kW)
  • System Package: 320 x 320 x 100 mm
  • AC Compatibility: 85 - 265 VAC, 45 - 65 Hz
  • Plug Type: NEMA 14-50 and NEMA 5-15
  • Cable Length: 20 ft (6m)
  • Weight: 9 lbs (4.1 kg) - module
  • Operating Temperature: -40C (-40°F) to +55C (131°F)
  • Indoor / Outdoor: Yes | NEMA 6P watertight, IP67 (up to 3ft submerged)
  • Certified Altitude: 13,123 ft (4000m)
  • Vehicle Connector: SAE, IEC

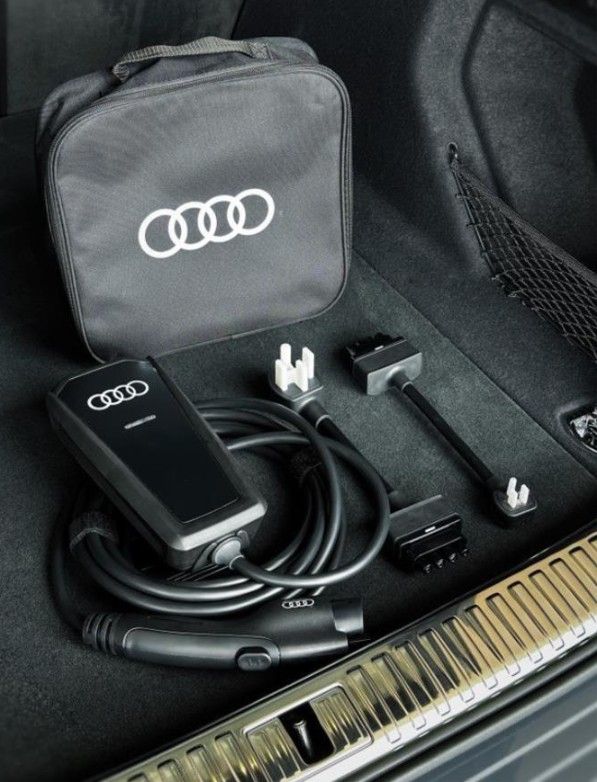

  Included in kit:
  • Main Display Unit
  • 20 ft. Cord with charging plug
  • NEMA 14-50 240V AC/ 32A Connector
  • NEMA 5-15 120V AC / 15A Connector
  • Cord set Wall Bracket
  • Carrying Case

  Proper installation is required. Professional installation may be recommended. See owner’s literature and dealer for details.

  Fits e-tron GT, Q4 e-tron, Q4 Sportback e-tron, Q5, Q6, Q8 e-tron, Q8 e-tron Sportback, RS e-tron GT, SQ6

   Note: 2025 Q5 fitment is for Q5 e-tron models only – product is not applicable to 2025 Q5 SUV or Q5 Sportback.

• Replaces:

  85h051434a
